t_connector

Connector is de vastlegging van een verbinding tussen twee elementen. Dit is ook duidelijk terug te zien in de relaties tussen elementen en de connector. Daarvoor is een tweetal foreign key verbindingen ingeregeld.

Package	Fysiek data model (Sparx)
Auteur	Bert Dingemans
Alias
Stereotypes	table

Attributes

Name	Type	Cardinality
Connector_ID	int	#mincard# - #maxcard#
Name	nvarchar	#mincard# - #maxcard#
Direction	nvarchar	#mincard# - #maxcard#
Notes	nvarchar(max)	#mincard# - #maxcard#
Connector_Type	nvarchar	#mincard# - #maxcard#
SubType	nvarchar	#mincard# - #maxcard#
SourceCard	nvarchar	#mincard# - #maxcard#
SourceAccess	nvarchar	#mincard# - #maxcard#
SourceElement	nvarchar	#mincard# - #maxcard#
DestCard	nvarchar	#mincard# - #maxcard#
DestAccess	nvarchar	#mincard# - #maxcard#
DestElement	nvarchar	#mincard# - #maxcard#
SourceRole	nvarchar	#mincard# - #maxcard#
SourceRoleType	nvarchar	#mincard# - #maxcard#
SourceRoleNote	nvarchar(max)	#mincard# - #maxcard#
SourceContainment	nvarchar	#mincard# - #maxcard#
SourceIsAggregate	int	#mincard# - #maxcard#
SourceIsOrdered	int	#mincard# - #maxcard#
SourceQualifier	nvarchar	#mincard# - #maxcard#
DestRole	nvarchar	#mincard# - #maxcard#
DestRoleType	nvarchar	#mincard# - #maxcard#
DestRoleNote	nvarchar(max)	#mincard# - #maxcard#
DestContainment	nvarchar	#mincard# - #maxcard#
DestIsAggregate	int	#mincard# - #maxcard#
DestIsOrdered	int	#mincard# - #maxcard#
DestQualifier	nvarchar	#mincard# - #maxcard#
Start_Object_ID	int	#mincard# - #maxcard#
End_Object_ID	int	#mincard# - #maxcard#
Top_Start_Label	nvarchar	#mincard# - #maxcard#
Top_Mid_Label	nvarchar	#mincard# - #maxcard#
Top_End_Label	nvarchar	#mincard# - #maxcard#
Btm_Start_Label	nvarchar	#mincard# - #maxcard#
Btm_Mid_Label	nvarchar	#mincard# - #maxcard#
Btm_End_Label	nvarchar	#mincard# - #maxcard#
Start_Edge	int	#mincard# - #maxcard#
End_Edge	int	#mincard# - #maxcard#
PtStartX	int	#mincard# - #maxcard#
PtStartY	int	#mincard# - #maxcard#
PtEndX	int	#mincard# - #maxcard#
PtEndY	int	#mincard# - #maxcard#
SeqNo	int	#mincard# - #maxcard#
HeadStyle	int	#mincard# - #maxcard#
LineStyle	int	#mincard# - #maxcard#
RouteStyle	int	#mincard# - #maxcard#
IsBold	int	#mincard# - #maxcard#
LineColor	int	#mincard# - #maxcard#
Stereotype	nvarchar	#mincard# - #maxcard#
VirtualInheritance	nvarchar	#mincard# - #maxcard#
LinkAccess	nvarchar	#mincard# - #maxcard#
PDATA1	nvarchar	#mincard# - #maxcard#
PDATA2	nvarchar(max)	#mincard# - #maxcard#
PDATA3	nvarchar	#mincard# - #maxcard#
PDATA4	nvarchar	#mincard# - #maxcard#
PDATA5	nvarchar(max)	#mincard# - #maxcard#
DiagramID	int	#mincard# - #maxcard#
ea_guid	nvarchar	#mincard# - #maxcard#
SourceConstraint	nvarchar	#mincard# - #maxcard#
DestConstraint	nvarchar	#mincard# - #maxcard#
SourceIsNavigable	int	#mincard# - #maxcard#
DestIsNavigable	int	#mincard# - #maxcard#
IsRoot	int	#mincard# - #maxcard#
IsLeaf	int	#mincard# - #maxcard#
IsSpec	int	#mincard# - #maxcard#
SourceChangeable	nvarchar	#mincard# - #maxcard#
DestChangeable	nvarchar	#mincard# - #maxcard#
SourceTS	nvarchar	#mincard# - #maxcard#
DestTS	nvarchar	#mincard# - #maxcard#
StateFlags	nvarchar	#mincard# - #maxcard#
ActionFlags	nvarchar	#mincard# - #maxcard#
IsSignal	int	#mincard# - #maxcard#
IsStimulus	int	#mincard# - #maxcard#
DispatchAction	nvarchar	#mincard# - #maxcard#
Target2	int	#mincard# - #maxcard#
StyleEx	nvarchar(max)	#mincard# - #maxcard#
SourceStereotype	nvarchar	#mincard# - #maxcard#
DestStereotype	nvarchar	#mincard# - #maxcard#
SourceStyle	nvarchar(max)	#mincard# - #maxcard#
DestStyle	nvarchar(max)	#mincard# - #maxcard#
EventFlags	nvarchar	#mincard# - #maxcard#

Diagrammen

Fysiek data model diagram (Sparx)

Diagram in repository

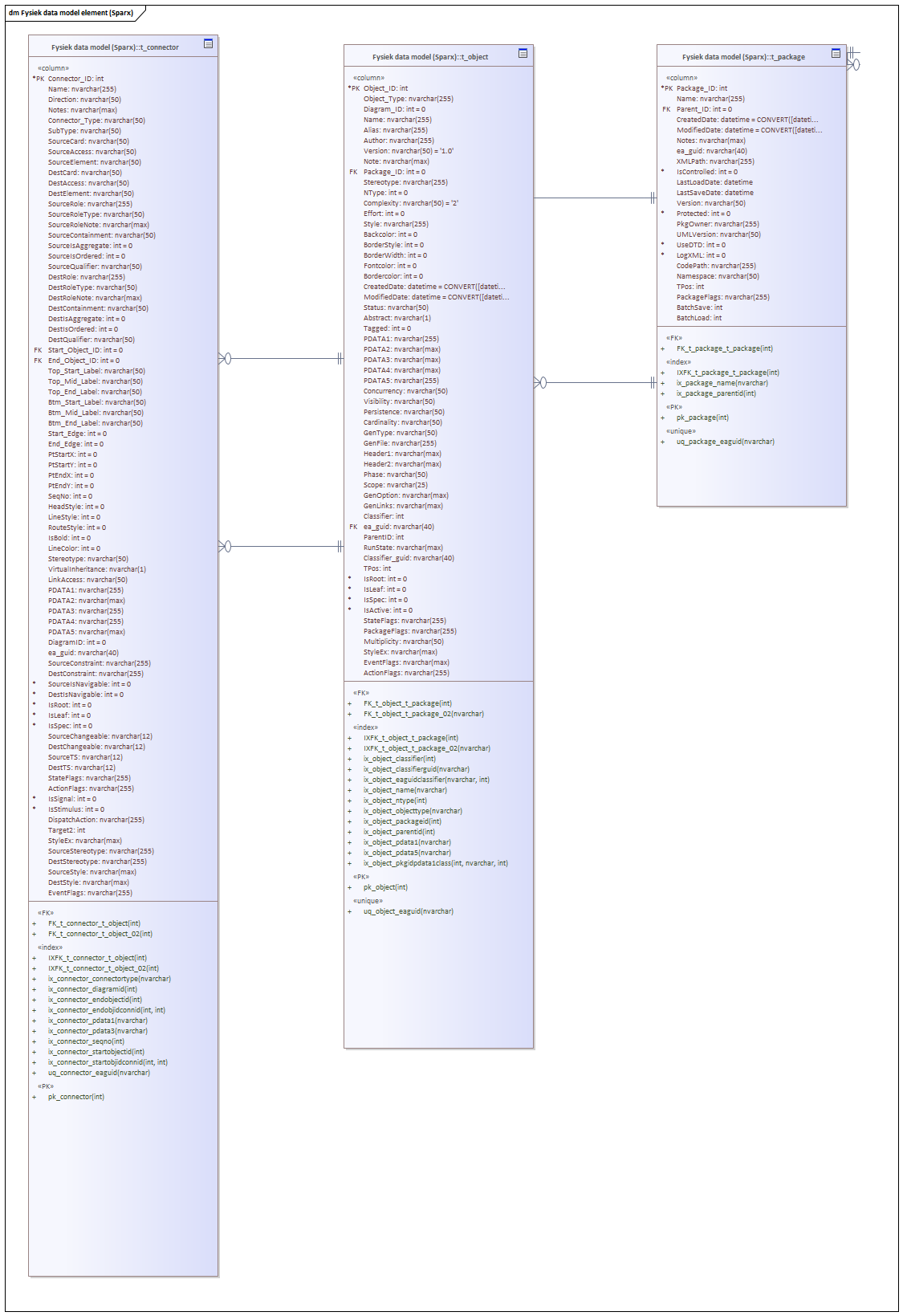

Fysiek data model element (Sparx)
