Resources | Fysiek data model (Sparx) | t_diagram |

t_diagram

Diagram is de tabel waarin de data over de diagrammen vastgelegd wordt.

Package Fysiek data model (Sparx)
Auteur Bert Dingemans
Alias
Stereotypes table

Attributes

Name Type Cardinality Description
Diagram_ID int #mincard# - #maxcard#
Package_ID int #mincard# - #maxcard#
ParentID int #mincard# - #maxcard#
Diagram_Type nvarchar #mincard# - #maxcard#
Name nvarchar #mincard# - #maxcard#
Version nvarchar #mincard# - #maxcard#
Author nvarchar #mincard# - #maxcard#
ShowDetails int #mincard# - #maxcard#
Notes nvarchar(max) #mincard# - #maxcard#
Stereotype nvarchar #mincard# - #maxcard#
AttPub int #mincard# - #maxcard#
AttPri int #mincard# - #maxcard#
AttPro int #mincard# - #maxcard#
Orientation nvarchar #mincard# - #maxcard#
cx int #mincard# - #maxcard#
cy int #mincard# - #maxcard#
Scale int #mincard# - #maxcard#
CreatedDate datetime #mincard# - #maxcard#
ModifiedDate datetime #mincard# - #maxcard#
HTMLPath nvarchar #mincard# - #maxcard#
ShowForeign int #mincard# - #maxcard#
ShowBorder int #mincard# - #maxcard#
ShowPackageContents int #mincard# - #maxcard#
PDATA nvarchar #mincard# - #maxcard#
Locked int #mincard# - #maxcard#
ea_guid nvarchar #mincard# - #maxcard#
TPos int #mincard# - #maxcard#
Swimlanes nvarchar #mincard# - #maxcard#
StyleEx nvarchar(max) #mincard# - #maxcard#

Diagrammen

Fysiek data model package (Sparx)

Fysiek datamodel van de package structuur en de verschillende elementen aanwezig binnen de package zoals elementen, diagrammen en subpackages.
Diagram in repository

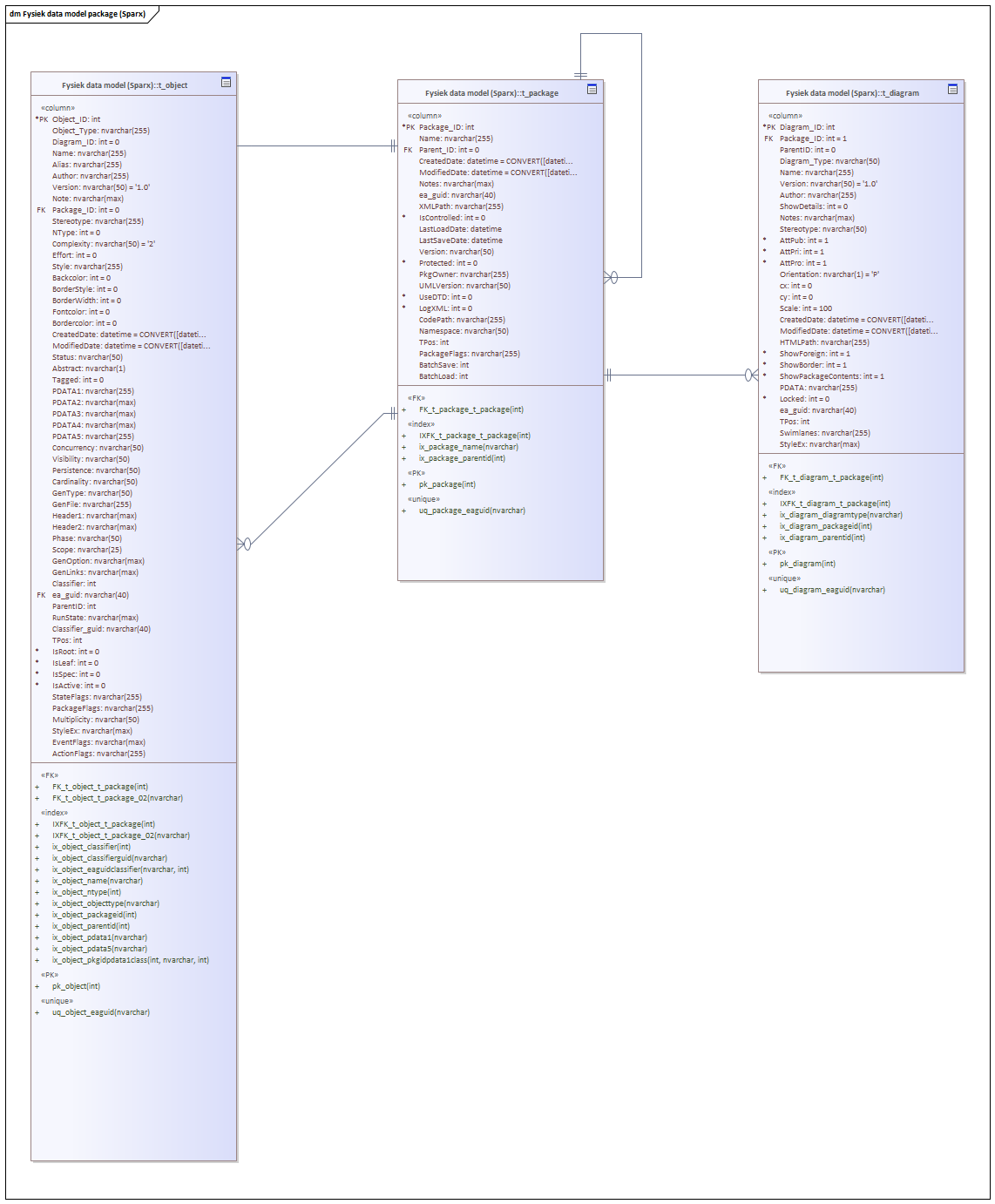

Fysiek data model diagram (Sparx)

Diagram in repository

Gekoppelde elementen

Fysiek data model (Sparx)
