t_attribute

Registratie van de eigenschappen horend bij een element. Met name in gebruik bij UML objectmodellering en database modellering.

Name	Type	Cardinality
Object_ID	int	#mincard# - #maxcard#
Name	nvarchar	#mincard# - #maxcard#
Scope	nvarchar	#mincard# - #maxcard#
Stereotype	nvarchar	#mincard# - #maxcard#
Containment	nvarchar	#mincard# - #maxcard#
IsStatic	int	#mincard# - #maxcard#
IsCollection	int	#mincard# - #maxcard#
IsOrdered	int	#mincard# - #maxcard#
AllowDuplicates	int	#mincard# - #maxcard#
LowerBound	nvarchar	#mincard# - #maxcard#
UpperBound	nvarchar	#mincard# - #maxcard#
Container	nvarchar	#mincard# - #maxcard#
Notes	nvarchar(max)	#mincard# - #maxcard#
Derived	nvarchar	#mincard# - #maxcard#
ID	int	#mincard# - #maxcard#
Pos	int	#mincard# - #maxcard#
GenOption	nvarchar(max)	#mincard# - #maxcard#
Length	int	#mincard# - #maxcard#
Precision	int	#mincard# - #maxcard#
Scale	int	#mincard# - #maxcard#
Const	int	#mincard# - #maxcard#
Style	nvarchar	#mincard# - #maxcard#
Classifier	nvarchar	#mincard# - #maxcard#
Default	nvarchar(max)	#mincard# - #maxcard#
Type	nvarchar	#mincard# - #maxcard#
ea_guid	nvarchar	#mincard# - #maxcard#
StyleEx	nvarchar(max)	#mincard# - #maxcard#

Diagrammen

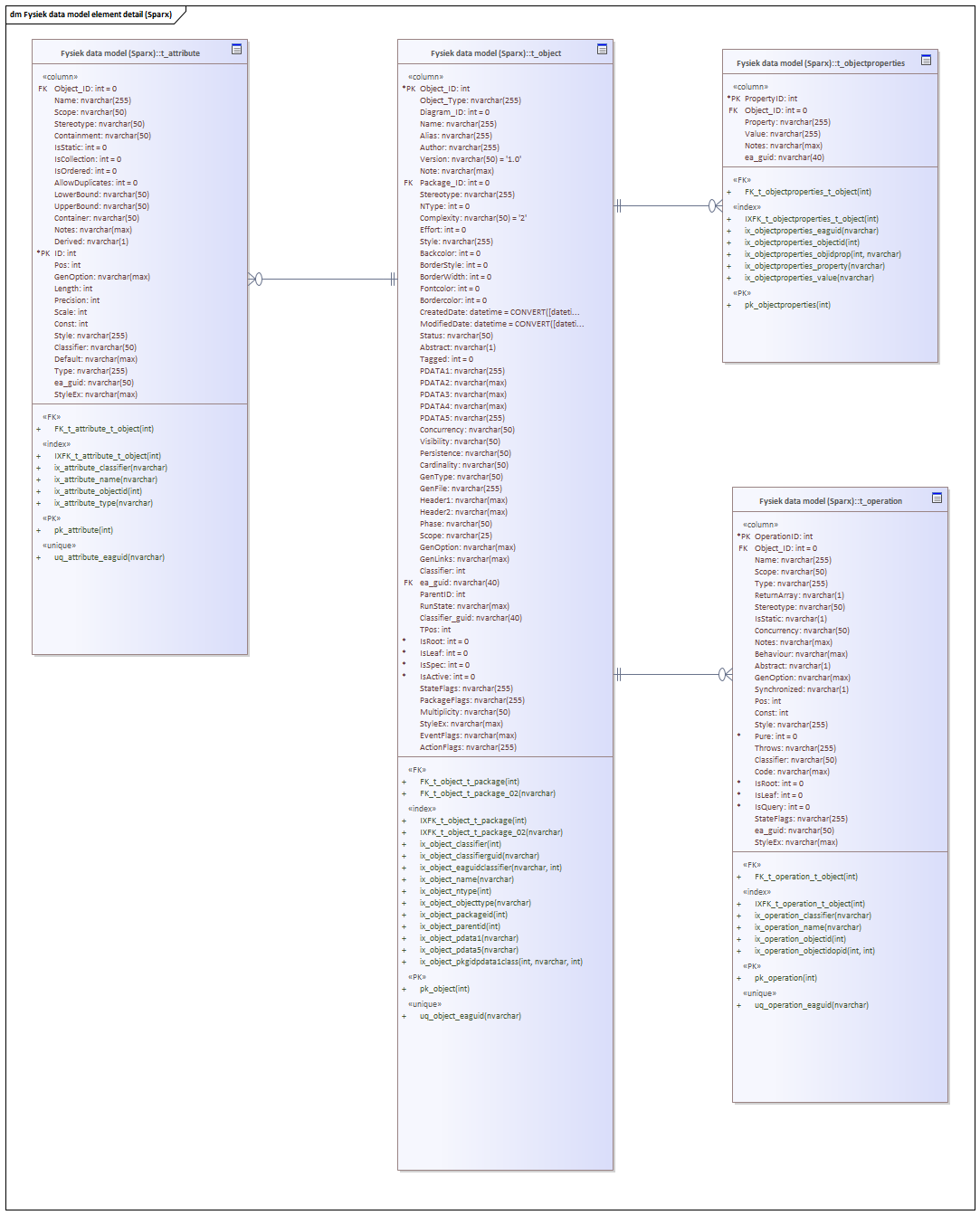

Diagram in repository
